RF Duplexer Filter
We manufacture RF Duplexer Filter for VHF, UHF Radios in 25 and 50 Watt. We also undertake customize designs with UHF Female, N Female, BNC Connectors

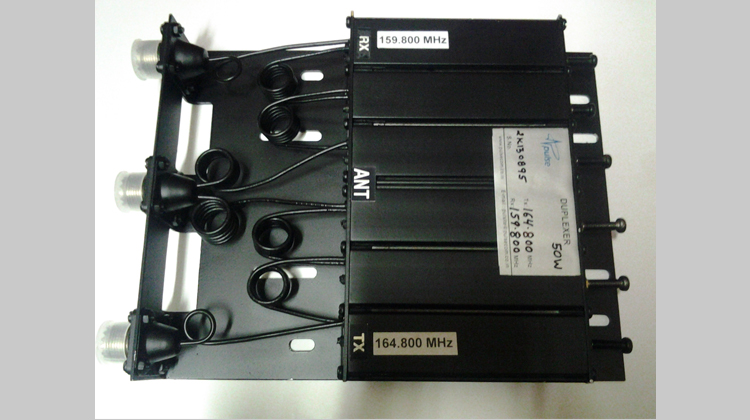

VHF Duplexer Filter - 50 Watt
Frequency : 136~ 174 MHz
Frequency separation : 4-7 MHz
Insertion Loss : ≤ 1.2 dB
Isolation : ≥ 75 dB
Return Loss : ≥18 dB
Connectors : N-Female/ UHF Female
Power : 50 Watt
Dimensions : 32x155x198 mm
Weight : (approx) 1.2 Kg
Operating Temperature : -10 to +60 deg C

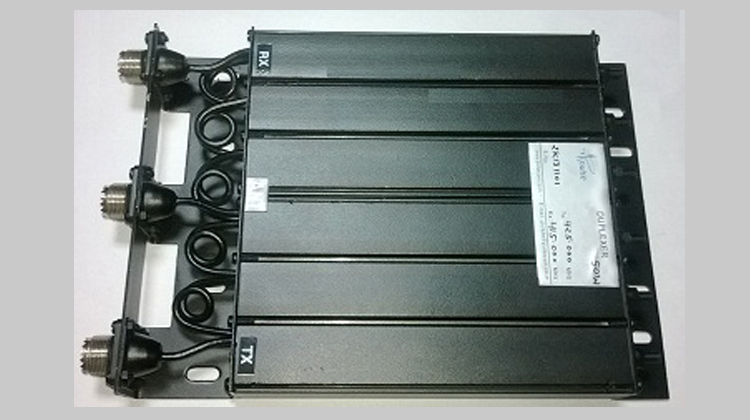

UHF Duplexer Filter - 50 Watt
Frequency : 400~ 470 MHz / 350 - 380 Mhz
Frequency separation : 5-10 MHz
Insertion Loss : ≤ 1.2 dB
Isolation : ≥ 75 dB
Return Loss : ≥18 dB
Connectors : N-Female
Power : 50 Watt
Dimensions : 32x155x220 mm
Weight : (approx) 1.4 Kg
Operating Temperature : -10 To + 60 deg C
